ALPINE R-A75M
FEATURES
Install

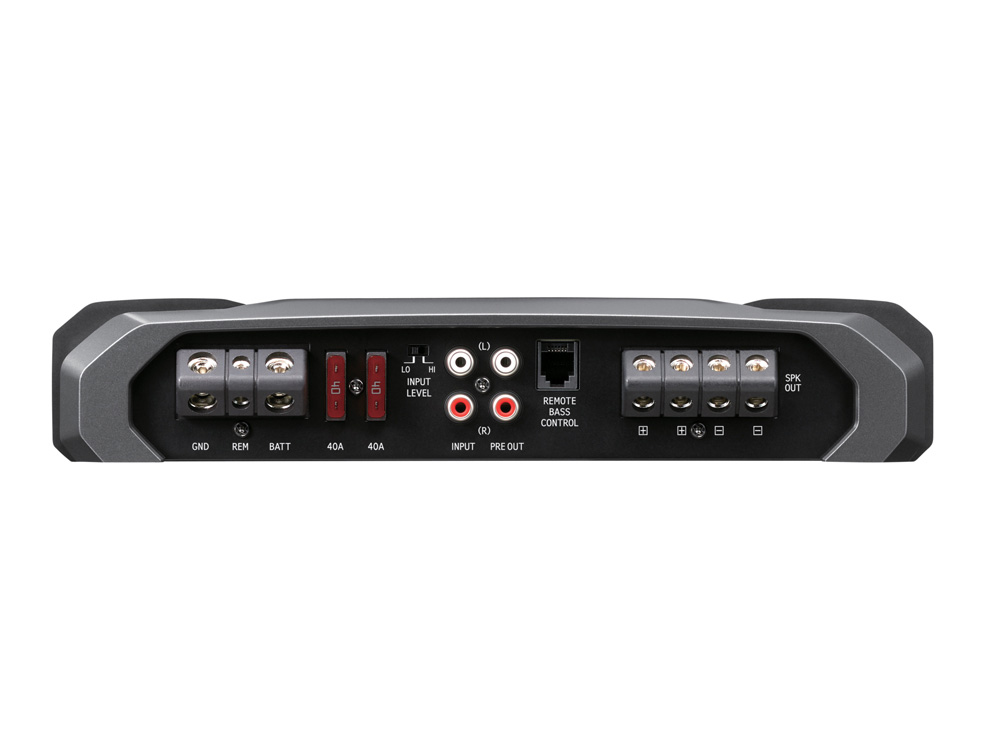

- Terminal Layout: One side
- Small footprint for easy installation
- Screw terminals (for speaker and power cables)
General
- Amplifier Type: Class-D (Digital)
- Channel Design: Mono Channel
- Thermal Management Control
- Top Mounted LED Power/Status Indicator
- Speaker Level Input with remote turn on
- Crossover: Adjustable Low-pass (LPF)

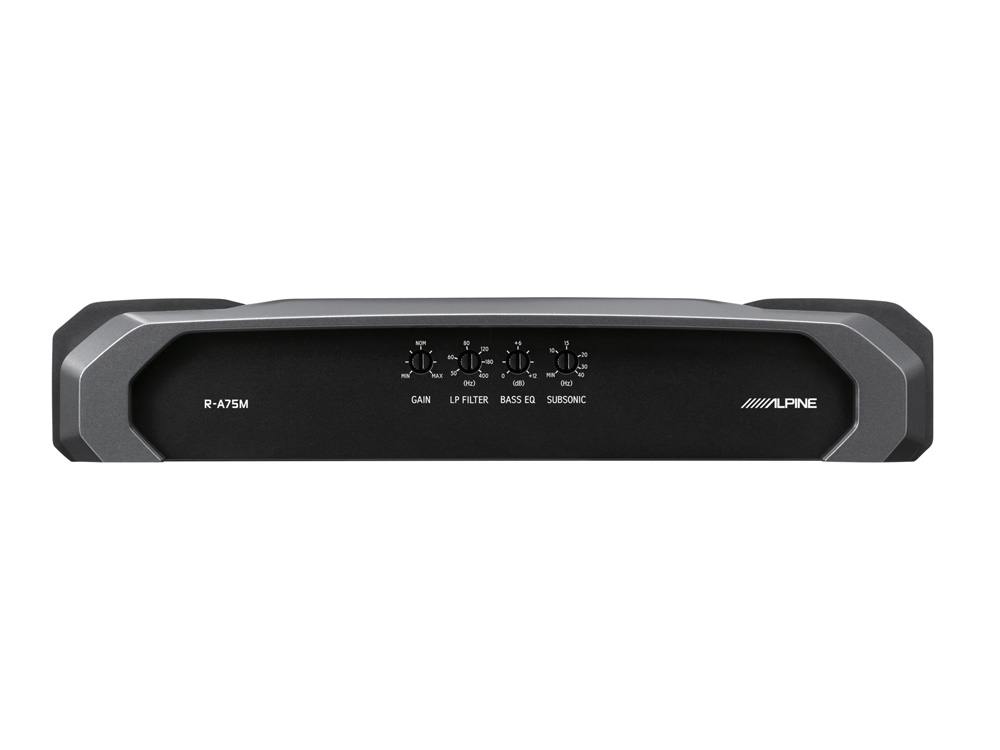

- Gain Control: Adjustable
- Bass EQ
- Subsonic Filter
- Remote Bass Control (RUX-KNOB2) Ready
SPECIFICATIONS
Max Power Output Ratings
- Total Max Power: 1500W
RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 750W
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 500W
Sound Tuning
- Crossover: Variable LPF: 50-400Hz (-24dB/oct )
- Variable Subsonic: 8-40Hz (-24dB/oct.)
General
- Power Requirements: 14.4 V.DC (9 – 16 V allowable)
- Input Sensitivity (RCA Input): Hi: 0.4V – 10V / Low: 0.1V – 4.0V
- High Level Input with automatic power on
- Cable size: Power Cable AWG 4, SPK Cable AWG 8
- Frequency Response (+0/ -3dB: 1W into 4 Ohms): 10Hz – 400Hz
- THD+N (@ 10W into 4 Ohms): <0.02%
- THD+N rated power into 4 Ohms): <0.03%
- Damping Factor: >1500
- Signal to Noise (rated power into 4 Ohms): >105dB
- Weight: 3.2kg
Dimensions
- Heat Sink (WxHxD) mm: 273 x 50.8 x 200
- With attached brackets: 273 x 50.8 x 223
Techniniai parametrai
- Specifikacija Maksimali išėjimo galia Bendra maksimali galia: 1600W RMS galia Kanalui prie 4Ω, 14.4V (≤1%THD+N)
